YUBI (Yielding Universal Bidigital Interface)

🌐 Project page: yubi.airoa.io

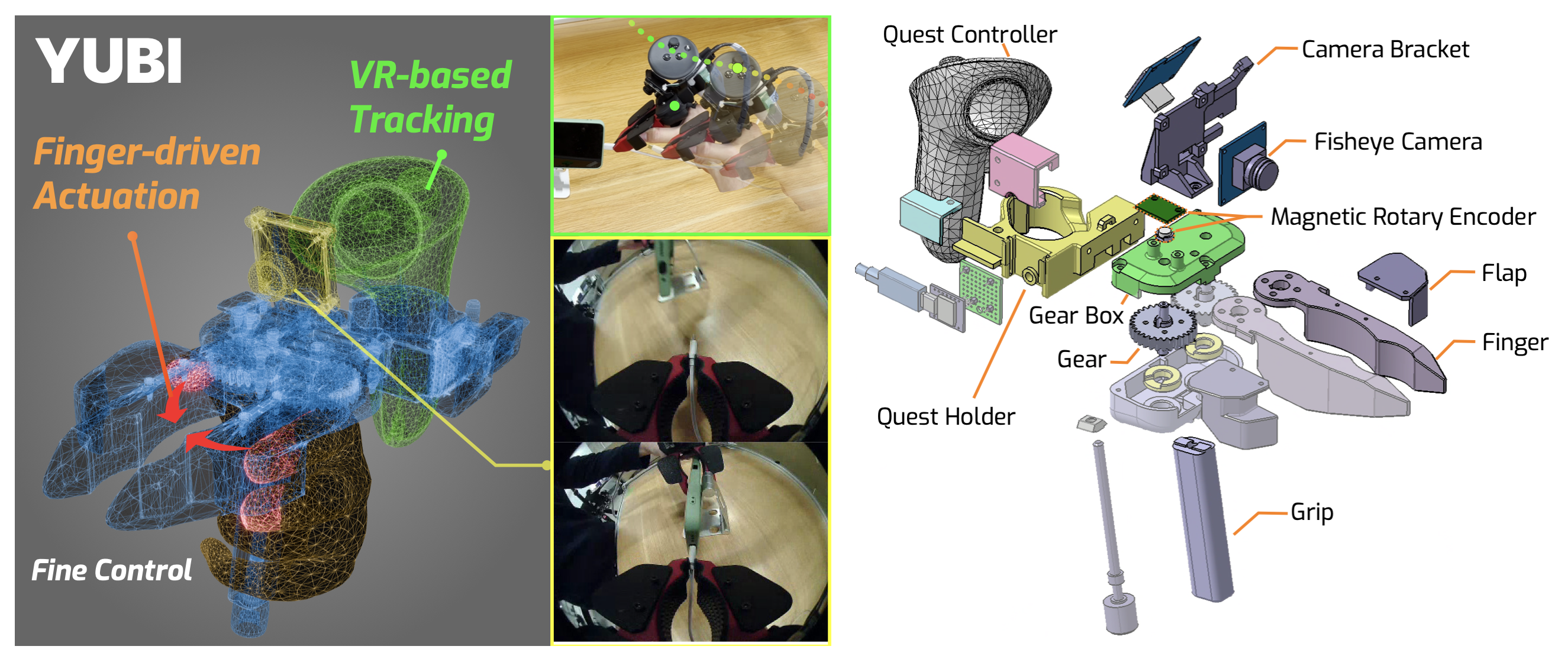

YUBI is a two-handed operation interface for collecting robot manipulation data. This repository is the operator-side bringup — it launches the hardware (encoders, hand cameras, footpedal or Quest controllers) and wires it through ROS 2 to the data-collection backend.

Related projects

The YUBI data collection stack is made up of several components:

• yubi-app — data collection app (operator-facing).
• yubi-core — ROS 2 backend for recording, uploading, and managing operation episodes.
• rebake — decode a ROS bag once, query it like a database, and bake it into LeRobot training data.

Quick setup guide

🚧 Under construction — stay tuned for the updates.

Dependencies

• docker
• docker compose
• make

Initial Setup

Gripper setup (ESP32C6)

Each gripper's open/close angle is read by a Seeed XIAO ESP32C6 running the AS5601 encoder firmware in firmware/ESP32C6_AS5601/. Flash it once per gripper board:

1. Install the Arduino IDE and add ESP32 board support, then select the XIAO_ESP32C6 board (see the Seeed getting-started guide).
2. Open ESP32C6_AS5601.ino and set DEVICE_ID to the side plus a 3-digit index — L### for the left gripper, R### for the right (e.g. L003 / R003).
3. Upload to the board, then repeat for each gripper.

PC setup (operator machine)

1. Clone this repository (with submodules)

   git clone https://github.com/airoa-org/yubi-sw.git --recursive
   cd yubi-sw

2. Create udev rules and calibrate the encoders (host machine)

   cd tools
   sudo -E bash yubi_udev_setup.sh          # add --variant portable on the portable rig

   The --variant option tells the script which hardware configuration to expect, which sets how many cameras the GUI looks for:

   • stationary (default) — yagura rig, two hand cameras (left/right).
   • portable — handheld rig, three cameras (left/right + a center/head camera).

   It defaults to stationary, so pass --variant portable only on the portable rig. This mirrors ROBOT_VARIANT in .env (see Choose a robot variant and Variants).

   While it runs, a Yubi Device Setup window opens so you can confirm the left/right device assignment and capture each gripper's closed position before the rules are written. The window is variant-aware and shows the cameras listed above for the selected variant.



   In the GUI (each marker matches the colored frame around that section in the screenshot above):

   • 🟥 Cameras — each panel shows a live feed. Move the left and right grippers and confirm the matching panel reacts. If left/right are reversed, click Swap Cameras.
   • 🟩 Encoders — each panel shows the live open/close value. Open and close the grippers and confirm the value tracks the motion. If left/right are reversed, click Swap Encoders. (If no value appears, reseat the gripper's USB cable and re-run the script.)
   • 🟦 Capture MIN — with a gripper held fully closed, click Capture MIN on that side. Do this for both grippers.
   • 🟨 APPLY — click APPLY to write the config and exit; Cancel aborts without writing.

   The script enumerates both USB cameras (UVC) and MCP2210-based encoders, records open/close limits, and writes:

   • /etc/yubi/encoder_limits.yaml (consumed by encoder_node)
   • /etc/udev/rules.d/99-yubi.rules (creates /dev/yubi_* symlinks)

   Replug the devices afterward (or run sudo udevadm trigger).

   If docker.yubi.service is installed and active, the script stops it before rewriting udev rules. When the service unit is not present but a yubi container is running directly (e.g. started via docker compose up), the script stops that container instead — otherwise it holds /dev/video* and camera open fails. When neither is present the stop is skipped. The script does not restart yubi on exit; bring it back up yourself with docker compose up -d when setup is done.

   Optional: Wired DHCP for Quest

   If you connect the Meta Quest to this PC over USB-Ethernet instead of Wi-Fi, run tools/yubi_dhcp_setup.sh to make this PC a DHCP server on that NIC and (optionally) pin a fixed IP for the Quest:

   # ip link  -> note the USB-Ethernet adapter name, e.g. enxAABBCCDDEEFF
   sudo ./tools/yubi_dhcp_setup.sh setup enxAABBCCDDEEFF \
       --quest-mac AA:BB:CC:DD:EE:FF --quest-ip 10.0.0.10

   The script assigns the static IP via whichever network backend is already active on the host (NetworkManager connection profile if NM is running, otherwise a netplan file), then writes /etc/default/isc-dhcp-server, /etc/dhcp/dhcpd.conf, and an auto-restart hook (a udev rule + an NM dispatcher script on NM hosts) so the service comes back up cleanly when the NIC is re-plugged. Other subcommands:

   • sudo ./tools/yubi_dhcp_setup.sh restart — manual fallback when the udev rule did not fire after a NIC re-plug.
   • sudo ./tools/yubi_dhcp_setup.sh status — show service state, the UDP :67 listener, and recent leases.
   • sudo ./tools/yubi_dhcp_setup.sh remove — undo everything (restores the .bak of /etc/default/isc-dhcp-server and /etc/dhcp/dhcpd.conf).

   See ./tools/yubi_dhcp_setup.sh --help for all options.

   Optional: Prevent suspend on laptop lid close

   When running the bringup on a laptop that needs to keep recording with the lid shut, install a systemd-logind drop-in that ignores the lid switch:

   sudo ./tools/yubi_lid_setup.sh apply     # ignore lid close (no suspend)
   sudo ./tools/yubi_lid_setup.sh reset     # restore distro default
   ./tools/yubi_lid_setup.sh status         # show current lid-switch policy

   apply writes /etc/systemd/logind.conf.d/99-yubi-lid.conf with HandleLidSwitch=ignore / HandleLidSwitchExternalPower=ignore / HandleLidSwitchDocked=ignore and restarts systemd-logind. The distro's main /etc/systemd/logind.conf is left untouched, so reset just unlinks the drop-in.

3. Configure environment variables

   cp .env.example .env

   .env controls docker-compose (data paths, MinIO credentials, optional overrides). See .env.example for the full list.

4. Choose a robot variant

   Set ROBOT_VARIANT in .env to one of:

   • stationary (default) — yagura frame, RealSense head camera, footpedal
   • portable — handheld frame, USB center camera, Quest controller buttons

   See Variants below for what each variant launches.

5. Create per-host config overrides (Quest IP, API key, etc.)

   Per-host secrets / per-machine tweaks live in yubi_bringup/config/local/<file>.yaml. That directory is gitignored and is merged on top of common/ and <variant>/ when configs are built. Example for the backend API key and the Quest IP:

   # yubi_bringup/config/local/robot_config.yaml
   /**:
     ros__parameters:
       api_key: "your-real-api-key"
       base_url: "http://x.x.x.x:8000/api"   # your backend host (yubi-app backend listens on :8000)

   # yubi_bringup/config/local/yubi_devices.yaml
   quest_bridge_node:
     ros__parameters:
       quest_ip: "x.x.x.x"   # your Quest's IP

   If you set up the wired DHCP link above, set quest_ip here to the same address you passed as --quest-ip to tools/yubi_dhcp_setup.sh.

   No edits to the committed common/*.yaml are needed for per-host values.

6. Build Docker images

   make docker          # builds both yubi-core and yubi + generates config/_runtime/
   make docker-yubi-core      # yubi-core only
   make docker-yubi   # yubi only
   make build-config    # regenerate config/_runtime/<variant>/ from common + <variant> [+ local]

   make docker runs build-config first so the merged runtime config is present before container start. Re-run make build-config whenever you edit anything in yubi_bringup/config/{common,stationary,portable,local}/.

   Or with docker compose. The yubi_core_builder service is gated by the build-only profile so it is excluded from a plain docker compose build; pass the profile to build it:

   docker compose --profile build-only build yubi_core_builder
   docker compose build yubi web_video_server

   make docker is the simpler path and is what CI uses.

Quest setup (Meta Quest headset)

The YUBI operation interface runs as a sideloaded app on a Meta Quest headset. Download the latest APK and install it over USB with adb.

1. Download the APK

   wget https://releases.dev.airoa.io/yubi/quest-app/yubi-quest-app-v0.1.0.apk

2. Enable Developer Mode on the Quest (one-time)

   In the Meta Horizon mobile app: Menu → Devices → select your headset → Headset Settings → Developer Mode → on. Then connect the headset to your machine over USB and accept the Allow USB debugging prompt inside the headset.

3. Install the APK

   adb install -r yubi-quest-app-v0.1.0.apk

   -r reinstalls/upgrades over an existing version while keeping its data.

   The app appears in the Quest library under Unknown Sources as YubiQuestApp.

Prefer a GUI? SideQuest can install the same APK by drag-and-drop.

Usage

1. Launch the YUBI Quest app

   Put on the Meta Quest headset and start YubiQuestApp (installed above under Unknown Sources). It must be running before you bring up the stack so the quest_bridge_node can connect to it (at the quest_ip you configured) and stream controller / tracking data.

2. Start the stack

   docker compose up -d

   This brings up the full data-collection stack. The yubi service runs ros2 launch yubi_bringup yubi_data_collection.launch.py as its container command, so the data-collection system (USB cameras, RealSense pipeline, footpedal/Quest input, encoders, rosbridge, and the task command dispatch node) starts automatically — you don't need to launch it by hand.

   The config-init service runs build_runtime_configs.py as a one-shot before yubi_core starts, so the merged config is always fresh on up.

End-to-end data collection

The full workflow across the YUBI stack:

1. Install the data collection app (yubi-app). Follow the yubi-app setup guide to bring up its backend + web frontend (and the bundled MinIO used for storage).

2. Set up a robot and task in the web app (http://localhost:3000/web):

   • Create a robot and issue an API key for it.
   • Register that API key in your robot config — set api_key (and base_url to the yubi-app backend, port 8000) in yubi_bringup/config/local/robot_config.yaml.
   • Create a task and assign it to the robot.

   See the yubi-app user guide for the details of each step.

3. Run the bringup and collect data. Start YUBI (docker compose up -d), then operate the device to record episodes for the assigned task.

4. Recordings upload automatically. When an episode finishes, it is uploaded to the local MinIO by default. To push to an external/remote S3 target instead, configure upload_targets.yaml — see the yubi-core upload reference.

5. Download and process. Fetch the recordings from MinIO, then turn them into training data with rebake.

   With the MinIO client (mc):

   mc alias set yubi http://localhost:9000 minioadmin minioadmin
   mc cp --recursive yubi/data/ ./recordings/

   …or with the AWS CLI:

   aws --endpoint-url http://localhost:9000 s3 cp --recursive s3://data/ ./recordings/
   # credentials: AWS_ACCESS_KEY_ID=minioadmin AWS_SECRET_ACCESS_KEY=minioadmin

Services

The docker-compose.yml starts the following services:

Service	Container name	Description
minio	minio	S3-compatible object storage for recordings
minio-init	minio-init	One-shot init container that creates the data bucket
yubi	yubi	Yubi bringup: hardware drivers, cameras, footpedal, rosbridge, task command dispatch
yubi_core	yubi_core	AIRoA data collection: task receiver, record manager, recording gate, recording uploader, task sequence manager
yubi_core_builder	(build-only)	Image build target for the yubi_core Dockerfile. Gated by the build-only compose profile so it is not started at runtime.
web_video_server	web_video_server	HTTP video stream server for camera feeds
lock_server	lock_server	Broadcasts the available robot UUIDs (HTTP GET /v1/robot on 127.0.0.1:28080), consumed by the yubi-app frontend to pick a robot

Use the service name with docker compose subcommands (e.g. docker compose logs yubi_core) and the container name with raw docker (docker exec -it yubi_core bash).

Lock server / yubi-app frontend: the lock_server advertises which robot UUIDs are available on this operator machine. To use it, set the lock-server URL (default http://localhost:28080) in the yubi-app frontend's .env so the app can list and select robots.

Variants

A variant captures a hardware configuration (e.g. yagura vs handheld). The active variant is selected by ROBOT_VARIANT in .env (or per-invocation via ros2 launch ... robot_variant:=portable).

Variants today

Variant	Center camera	Task input	robot_type
stationary	RealSense (/camera/camera/*)	Footpedal	"yubi"
portable	USB cam (/center_camera/*)	Quest controller buttons + gripper state	"yubi_portable"

Both variants run the encoder node, the two hand USB cameras, and the Quest bridge.

Config layout

yubi_bringup/config/
├── common/                       # shared across all variants
│   ├── yubi_devices.yaml      # hand cameras, quest_bridge, encoder
│   ├── robot_config.yaml         # backend / S3 / metadata / common record_topics
│   ├── recording_gate.yaml       # common health / TF / vr_tracking / duration
│   └── upload_targets.yaml
├── stationary/                   # overlay on top of common/
├── portable/                     # overlay on top of common/
├── local/                        # gitignored per-host overlay (3rd layer)
└── _runtime/<variant>/           # gitignored, generated by build_runtime_configs.py

Merge mechanism

There are two parallel layers, both driven by ROBOT_VARIANT:

• yubi_devices.yaml: loaded by ROS 2 launch as a multi-params YAML stack (parameters=[common, variant, local]). The launch file is presence-driven: a node spawns only when its YAML key appears in the merged keyset. To add hardware, drop a section into common or a variant and add an entry to yubi_bringup/yubi_bringup/launch_registry.py.

• robot_config.yaml / recording_gate.yaml / upload_targets.yaml: pre-merged by yubi_bringup/tools/build_runtime_configs.py into config/_runtime/<variant>/, then mounted into the data-collection container. Run make build-config after editing any of these.

Merge semantics: dicts merge recursively; lists in an overlay replace the base list; use key: {__extend__: [...]} in an overlay to append items.

Variant-specific overrides on the command line

ros2 launch yubi_bringup yubi_data_collection.launch.py robot_variant:=portable

This bypasses .env for a single launch. The mounted runtime YAMLs still follow ROBOT_VARIANT from compose; rebuild with ROBOT_VARIANT=portable docker compose up -d --force-recreate config-init if you need the data-collection container to see the portable configs.

Manual Usage

Enter the yubi container:

docker compose exec yubi bash

Launch the full bringup (inside the container)

ros2 launch yubi_bringup yubi_data_collection.launch.py

The launch file starts USB cameras, the RealSense pipeline, the footpedal node, rosbridge websocket, and the task command dispatch node.

Rebuild the workspace (inside the container)

colcon build --symlink-install
source install/setup.bash

Re-run colcon build whenever you change the Python packages; URDF/Xacro edits do not require rebuilding.

Troubleshooting

1. A gripper finger doesn't move — reseat (unplug/replug) that gripper's USB cable. If it still doesn't move, re-run the udev setup (cd tools && sudo -E bash yubi_udev_setup.sh, see PC setup).

2. A gripper pose isn't tracked — check that the YUBI Quest app (YubiQuestApp) is running on the headset (see Usage).

3. A camera doesn't work — reseat (unplug/replug) that camera's USB cable. If it still doesn't work, re-run the udev setup (cd tools && sudo -E bash yubi_udev_setup.sh, see PC setup).

Development

make help          # Show available targets
make lint          # Run ruff linter and formatter check
make test          # Run unit tests with pytest
make test-config   # Run only the build_runtime_configs / variant tests
make build-config  # Regenerate config/_runtime/<variant>/ from common + variant [+ local]
make docker        # Build all Docker images (yubi + yubi-core)

Contributors

• Khrapchenkov Petr
• Takuya Okubo
• Naoaki Kanazawa
• Miki Ma
• Naruya Kondo
• Jumpei Arima
• Yuki Noguchi

Contributing

Contributions are welcome! See CONTRIBUTING.md for development setup and guidelines, and our Code of Conduct.

Citation

If you use YUBI in your research, please cite:

@misc{ohkawa2026yubi,
      title={{YUBI}: Yielding Universal Bidigital Interface for Bimanual Dexterous Manipulation at Scale},
      author={Takehiko Ohkawa and Jumpei Arima and Yuki Noguchi and Masatoshi Tateno and Makoto Sugiura and Takuya Okubo and Kengo Ikeuchi and Yuma Shin and Hiroki Nishizawa and Naoaki Kanazawa and Yuki Wakayama and Daiki Fukunaga and Koshi Makihara and Tomohiro Motoda and Floris Erich and Yukiyasu Domae and Tatsuya Matsushima and Yohishiro Okumatsu and Kei Ota},
      year={2026},
      eprint={2606.10244},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2606.10244},
}

License

This project is licensed under the Apache License 2.0.
